About This Product

The Aluminum Sliding Door is an ideal solution for seamlessly integrating indoor and outdoor spaces. Compare to traditional vinyl products, thermal break aluminum outperforms in durability, structural strength as well as energy efficiency performances. We offer large size options up to 144 in. width, bringing in more sunlight as well as your beautiful garden view. Engineered with precision, the door offers comprehensive sealing capabilities, rendering it suitable for a range of weather conditions. The glass is coated with double Low-E layer and filled with argon gas in between, significantly reducing heat and harmful rays transfer and optimizing energy consumption.

Highlights

Pre-assembled to ensure fit: every door is pre-assembled and tested before shipping, hinge holes are pre-drilled to facilitate a smooth and straightforward installation process
Double thermally broken aluminum the frame has built in double thermal insulation strip to enhance energy efficiency, aluminum will never rust
Triple track design each door has its own track and slide independently
No need to modify wall: the frame is 6 in. wide and fit in traditional 2 x 6 stud wall, no need to modify the wall
Door handling: standing at interior side, left-most panel is the main door and it will lead the 2nd panel when all panels slide to right, the right-most panel can be locked to change to a stationary door, we recommend to slide all 3 panels to right side for full opening
White powder coated finish no color fading after years of usage
High quality glass: double glazed with agron filled, tempered glass, applied 2 layer low-E coating to ensure best in class energy efficient
Full hardware set come with every hardware needed, main panel is lockable from inside and outside (keys included), last panel is lockable from inside to change to stationary door, hardware in silver color
Size guide: the option is for rough opening, the frame size is 0.6 in. shorter in width and height for installation, for example, a 120 in. x 80 in. door has a frame size of 119.4 in. x 79.4 in. to fit in a 120 in. x 80 in. opening
Extra thin frame: 15% more glass than standard patio door
Energy efficient u factor=0.30; SHGC 0.23, title 24 compliant

Ark Design offers free shipping for all orders within the Continental US. Please ensure that you provide a valid residential or commercial address. We cannot ship to PO Boxes, APO (Army Post Office), FPO (Fleet Post Office), DPO (Diplomatic Post Office) destinations, or freight forwarders.
If you need expedited shipping, please contact info@arkdesignhome.com before or after your purchase. An extra shipping fee will be charged for fast shipping.
For freight safety and compliance, some products may be shipped in multiple boxes. Hence, you may receive multiple shipments.
Your order will be processed within 48 business hours. However, shipping times may vary due to holidays or other reasons. If you have a question about your product's specific delivery time, please feel free to email us at info@arkdesignhome.com
An email with shipment details will be sent after your purchase has been handed over to the carrier. You can also check the status on our website under “Support → Order Track”.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.

Who is covered by this warranty?

This limited warranty only applies to the customer who originally purchased the product. It does not extend to any subsequent owner or transferee of the product.

How to use this warranty?

To initiate a claim, please contact us via email at info@arkdesignhome.com with detailed pictures illustrating your claim.

What does this limited warranty cover?

All hardware: We have strong confidence in all of our hardware and provide a 5-year full warranty on all hardware (worn-out finishes are not included). If a warranty claim is confirmed, we will send a brand new replacement hardware free of charge.
All doors: We offer a limited warranty of one year to cover defects in materials and workmanship. Please note that the warranty does not cover (a) improper use; (b) failure to follow the product instructions or perform any preventive maintenance; (c) modifications; (d) unauthorized repair; (e) normal wear and tear; or (f) external causes such as accidents, abuse, or other actions or events beyond our reasonable control.

Note: Please inspect your product carefully before installation. This limited warranty does not cover any costs associated with return shipping, installation, or de-installation. These costs include, but are not limited to, contractor or installer time, travel, or transportation of the product for any reason.

We have taken great care in designing and constructing our products, ensuring your complete satisfaction with every purchase. Our products are backed by industry-leading after-sales and return services, giving you peace of mind when making a purchase. However, there may be situations that require you to change or return a product, which we will handle accordingly as below

Manufacturer Defect

Please send detailed pictures of the defective parts to info@arkdesignhome.com . Once we confirm the defect, we will send a new product or replacement parts free of charge.

Arrived Damaged or Missing Parts

It is necessary to open and inspect shipments upon arrival. Please take a photo of damaged parts or missing parts and send to email info@arkdesignhome.com . We will offer a solution within 24 business hour free of charge.

Buyer’s Remorse

If you need to return or exchange your order, please notify us via email at info@arkdesignhome.com within 30 days of receiving your order. Please note that the shipping cost will be deducted from the return amount.

Please note:

Customer designed custom projects cannot be returned. Installed products are not eligible for this return policy.
A returned product must be in a re-sellable condition to receive a full credit. We expect the same level of quality in returned products as we provide in our delivered products. Items that are returned damaged are not eligible for a full credit. Please ensure to take a photo of the returned item intact before you deliver to the carrier.
Please package the product properly to prevent shipping damage. You are responsible for loss or damage during return shipping.

Why Choose Ark Design White Aluminum Sliding Patio Door?

Thermally Broken Aluminum: Better eneregy efficiency than vinyl and traditional aluminum door.

Durability and Strength: Unlike vinyl or standard aluminum doors, our thermally broken aluminum doors are engineered to resistdents, scratches, and other damage. This makes them the perfect choice for outdoor settings, ensuring long-lasting beauty and functionality.

White Powder Coated Finish: The high-quality white powder-coated finish not only adds a sleek aesthetic but is also resistant to fading.

Ultra-Thin Frame: The ultra-thin frame design maximizes the glass area, providing an unobstructed view of your garden. This modern look enhances the overall decor of your room, creating a more spacious and inviting atmosphere.

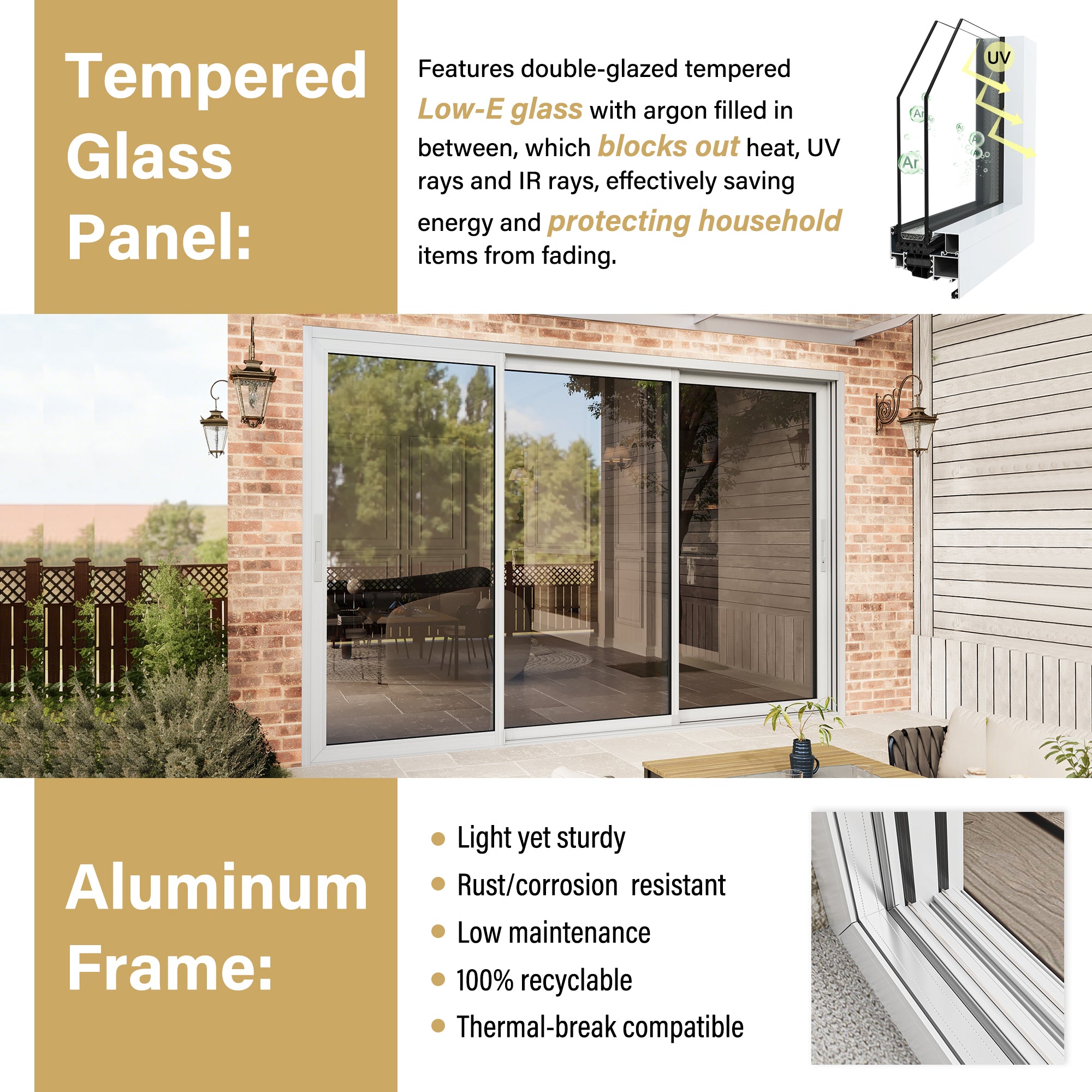

High Quality Clear Glass For Better Energy Performance

Contemporary Design: With 15% more glass than standard patio doors, our design allows you to not only fully enjoy the beauty of your garden,but also blocks out heat, Uyrays and lR rays, effectivelysaving energy and protectinghousehold items from fading. The sleek lines and expansive glass enhance the sense of depth in your rooms, making them feel more open.

Upgraded Glass Design: The double-layer Low-E coating not only enhances safety but also provides superior sound insulation and thermal efficiency, ensuring a comfortable indoor environment.

Excellent Sealing Performance

Sealing Guarantee: Each panel is equipped with high-quality seals that guarantee excellent sealing performance against wind and water, ensuring your home remains comfortable and protected.

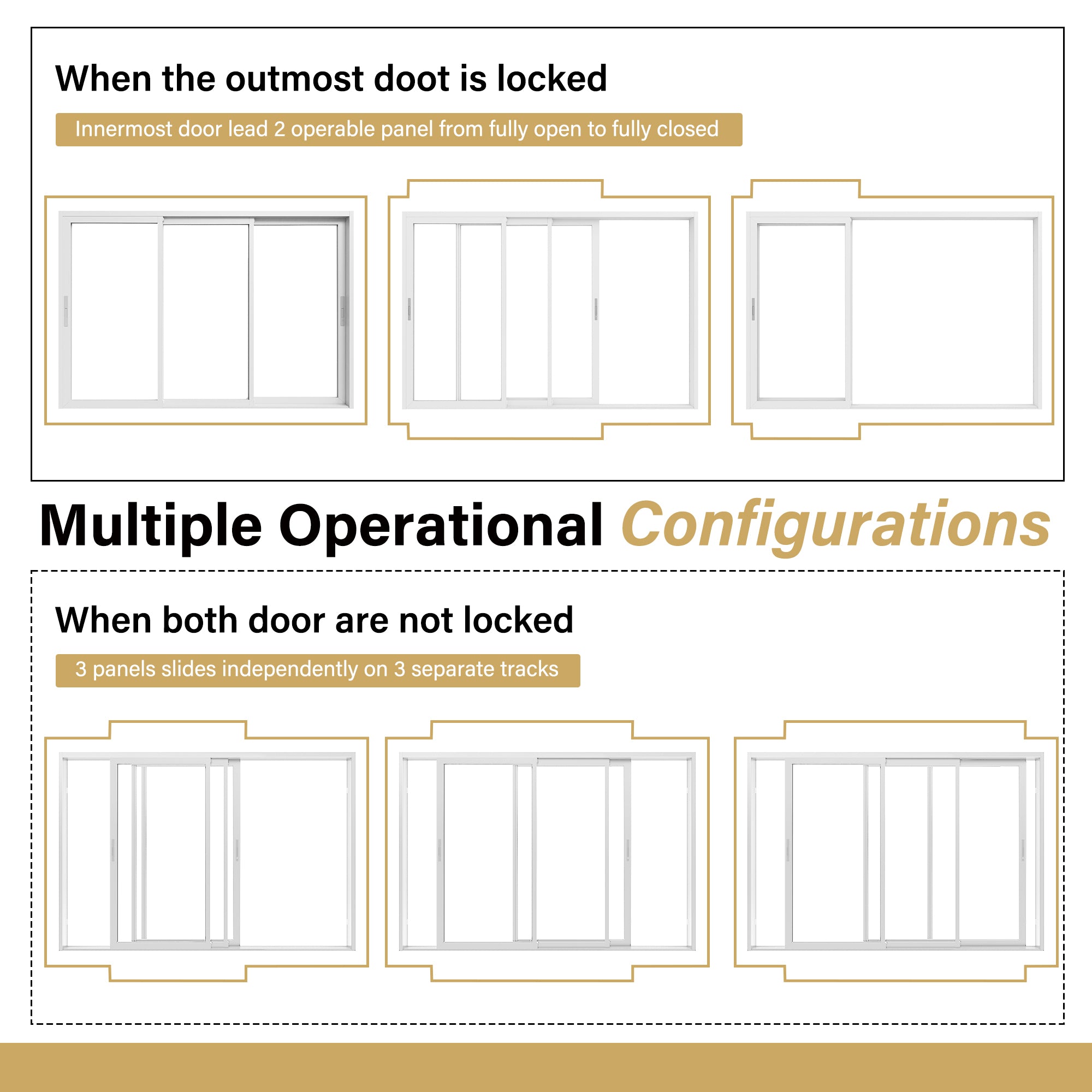

Multiple Operational Configurations

Bypass Sliding Door Design: Both panels of the door can slide, offering flexibility in how you utilize your space and providing a maximum sliding area of 66.67% of the opening.Customers could choose the door fully open to reft or right, or partial open because of the flexibility that both doors can stop at any position.

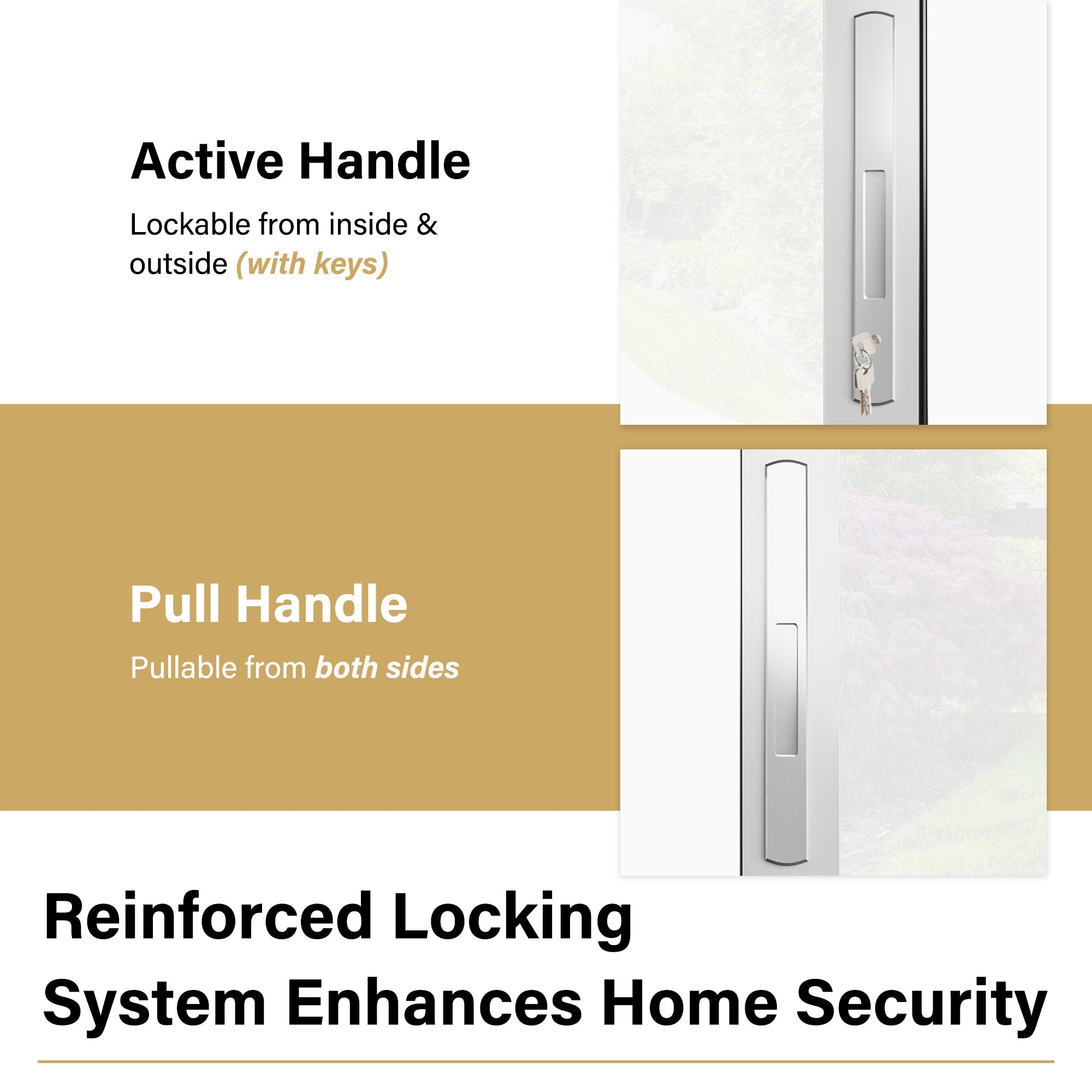

Reinforced Locking System Enhances Home Security

Main Handle: While the exterior sturdy and aesthetically pleasing, it also serving as a door lock. Customers can rotate this handle 180 ° up and down to easily open and close the patio door. Additionally, customers can lock the door from the inside using this handle.

Secondary Handle: The handle can help you pull the door from both sides. Customers can lock or unlock the door from the inside by flipping the switch up and down

Pre-assembled & Tested for Easy Installation

Ready to Install: Each door is pre-assembled and rigorously tested before shipping, ensuring a perfect fit and hassle-free installation. All hardware holes are pre-drilled, making the installation process straightforward.

Complete Hardware Set: Every door comes with a full set of hardware in a stylish black finish, providing everything you need for a seamless installation experience.

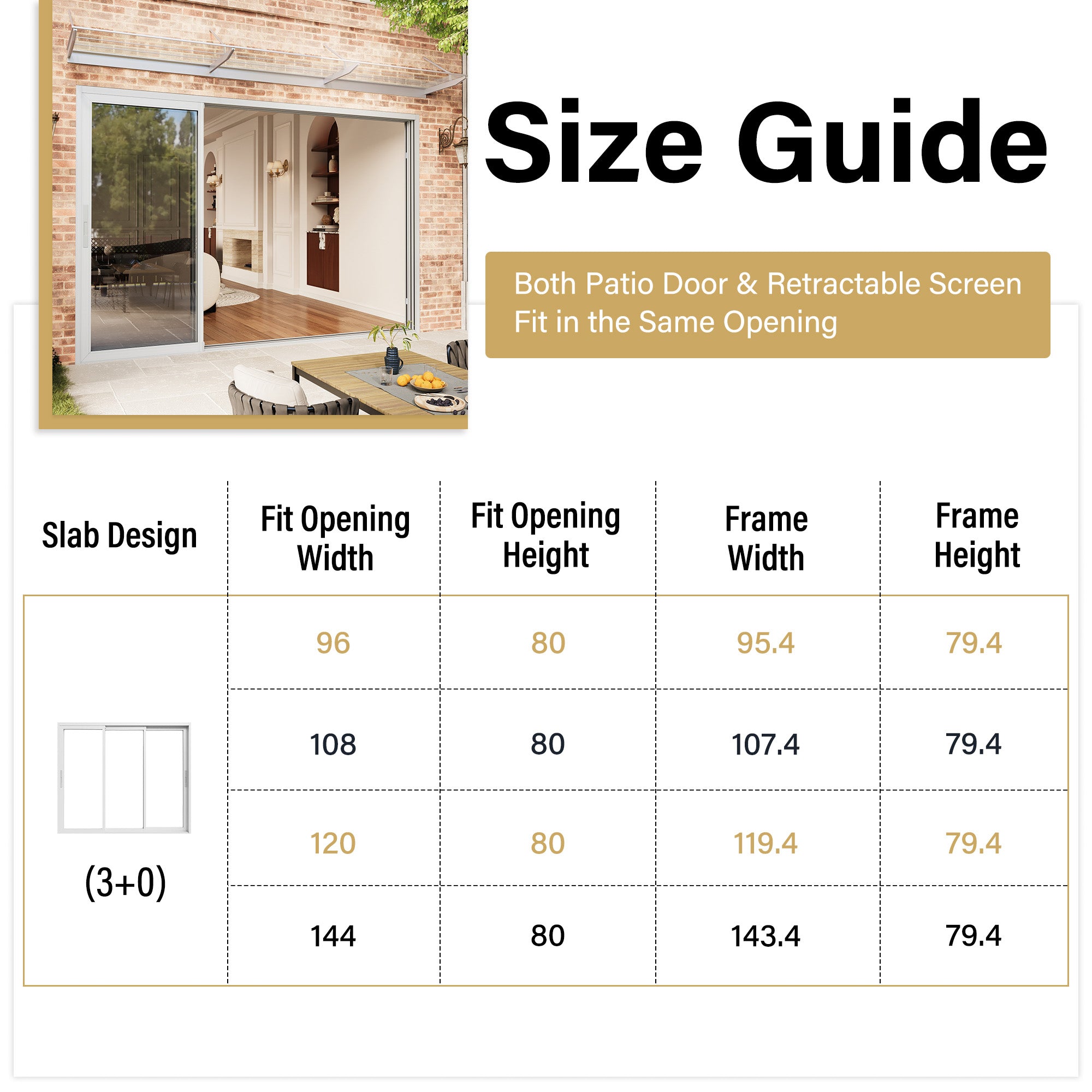

Size Guide: The option is for rough opening. The frame size is 0.6'' shorter in width and height for installation. For example, a 120''x80'' door has a frame size of 119.4'' x 79.4'' to fit in a 120''x80'' opening.

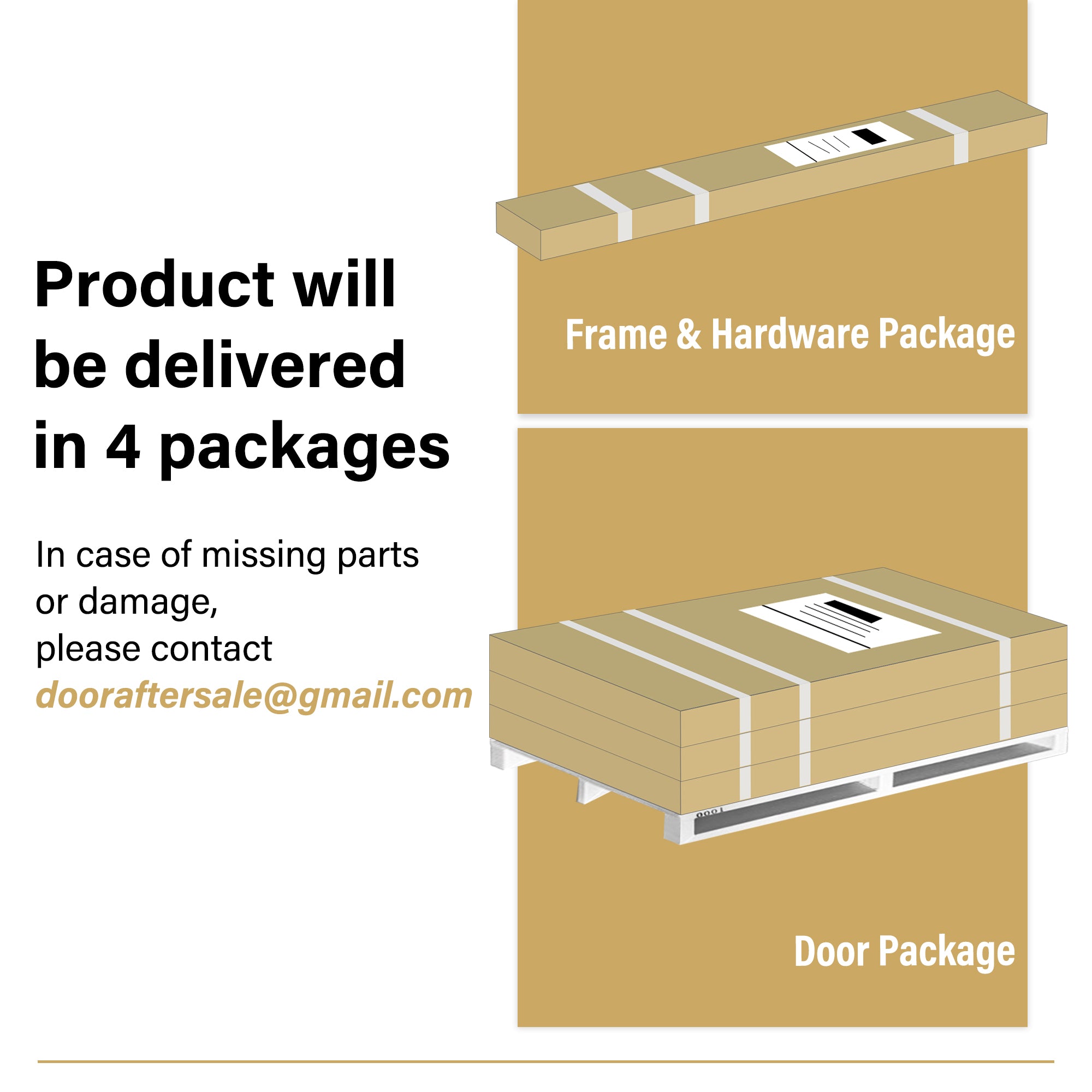

Product Will Be Delivered In Multiple Pakcages Wrapped On 1 Pallet To Ensure Safety

Including: The package includes hardware package & frame package and door package, among which door package may vary according to the size and specifications of the door you purchased. Please pay attention when signing for the package. If you find any issues including missing parts or damage during package delivery, please contact dooraftersale@gmail.com.

FAQ

What is the thickness of this door?

It is 3".
